ON/OFF RECEIVERS · RF + ZIGBEE
C3101Z
On/Off Receiver.
A RF + ZigBee on/off receiver for lighting control. Discuss the load and installation requirements for your project.
Control technology
Confirm the load rating for your lamp or driver and the complete system before ordering.
Compare receiver models ↗MODEL SPECIFICATIONS
The details that matter.
| Series | C3 Series |
|---|---|
| Format | Standard |
| Function | On/Off Receivers |
| Control solution | RF + ZigBee |

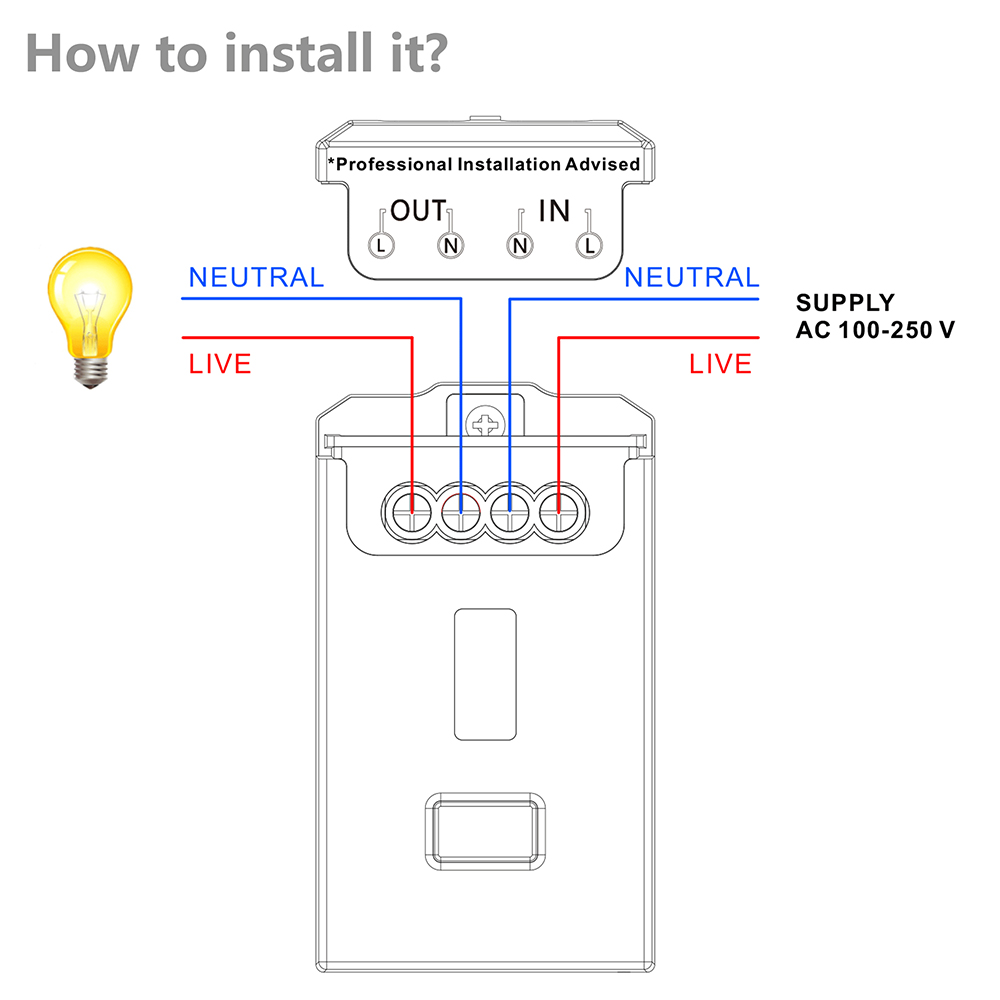

| Input / Output | 100–240V AC, 50/60Hz |
| Rated Current | 10A |
| Load power | LED: 500W (AC 230V) Resistive: 2000W (AC 230V) |
| Frequency | RF 433MHz + Zigbee 2.4GHz |

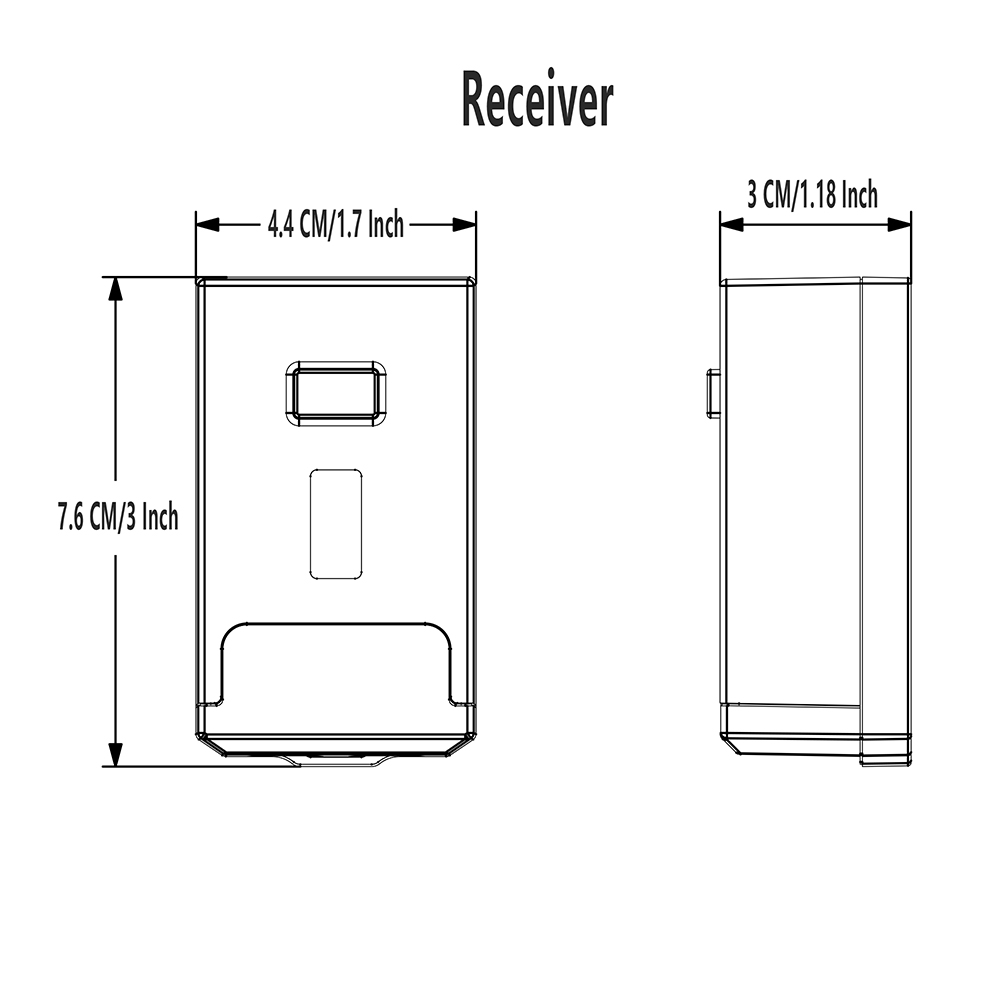

| Dimensions | 76 × 44 × 32 mm |
| Pairing method | Press and hold the pairing button for 3 seconds |

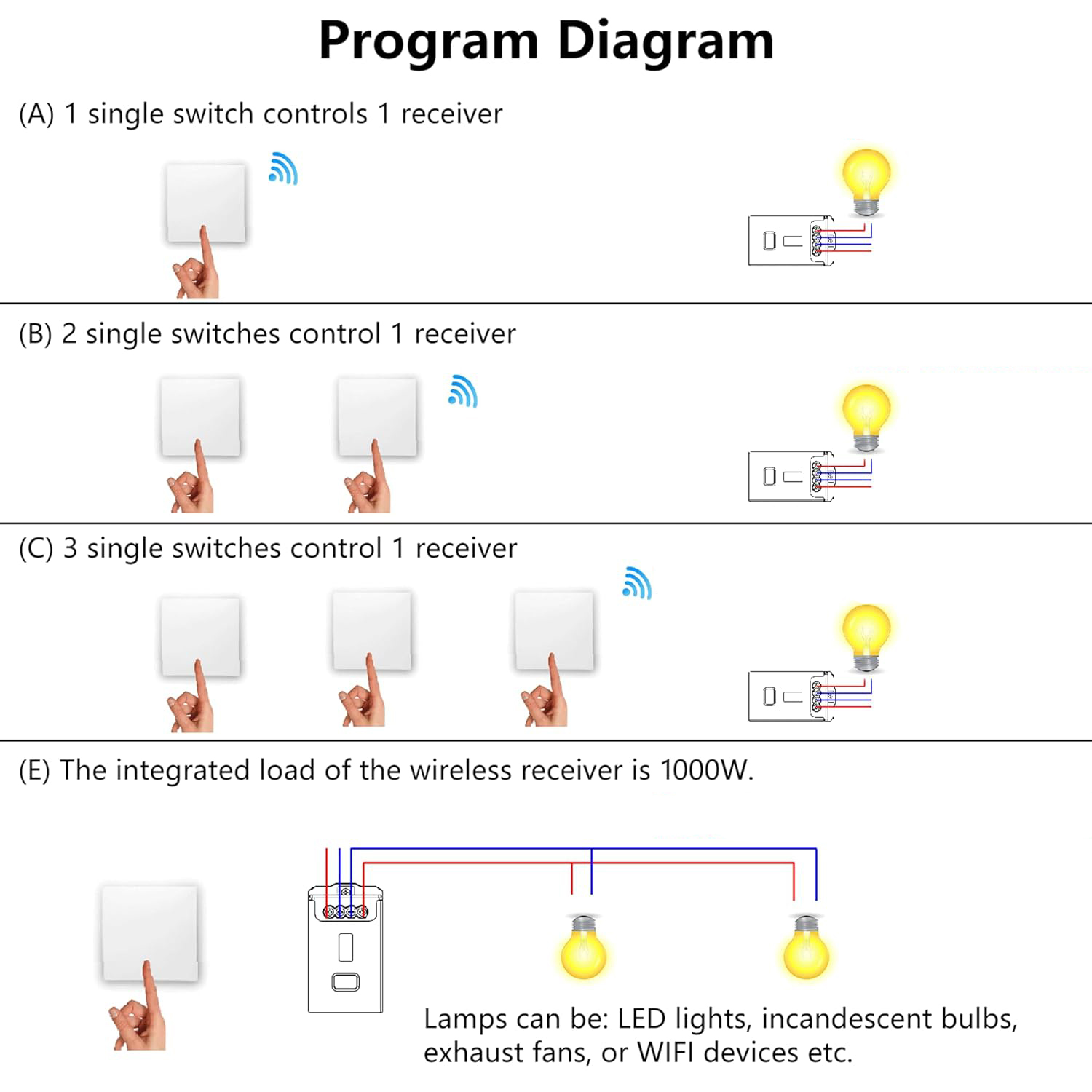

| Pairing Capacity | Max 10 switches |
| Certifications and standards | EuropeIEC 62368-1:2014; EN 62368-1:2014+A11:2017EN IEC 62311:2020EN 301 489-1/-3/-17; EN 55032/55035; EN IEC 61000-3-2; EN 61000-3-32014/53/EUETSI EN 300 220-1 V3.1.1; EN 300 220-2 V3.2.12014/35/EU; EN 62368-1:2014+A11:20172011/65/EU; (EU) 2015/863; IEC 62321 seriesEN 60669-1:2018; EN IEC 60669-2-1:2022+A11:2022 Australia / New ZealandAS 60669.2.1:2020 North AmericaTested samples passed CSA/UL 62368-1:2019 requirements (NTEK third-party laboratory). United KingdomBS EN IEC 62368-1:2020+A11:2020UK Radio Equipment Regulations 2017BS EN 62479:2010ETSI EN 300 220-1 V3.1.1; EN 300 220-2 V3.2.1ETSI EN 301 489-1 V2.2.3UK PSTI requirements (2023)BS EN 60669-1:2018; BS EN IEC 60669-2-1:2022+A11:2022 |
Confirm the load rating for your lamp or driver and the complete system before ordering.
