GS8 SERIES
GS8

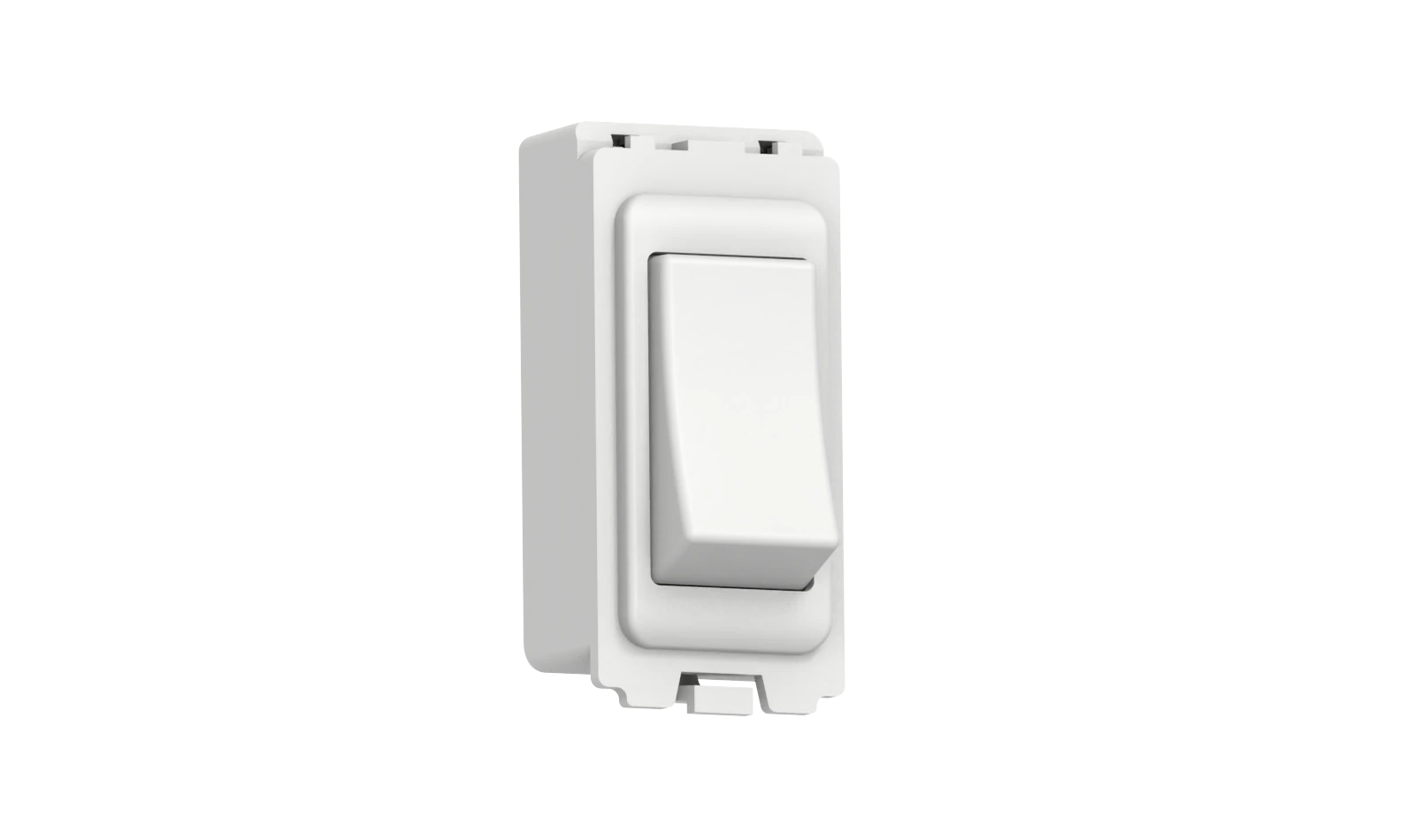

M2 Slimline & Metal compatible Kinetic Grid Switch.
A self-powered wireless grid transmitter for M2 grid plates in the Slimline & Metal range. Its mounting format follows the M2 3011-001 module. Lighting is controlled through a separately installed, paired ECO-NEWLEAF receiver.
Enquire about GS8 ↗Confirm switch–receiver compatibility with our team for your installation.
Explore switch series ↗MODEL SPECIFICATIONS
The details that matter.
| Model | GS8 |
|---|---|
| Colour | White |
| Keys Quantity | 1 Gang |
| Series | GS8 Series |
| Nominal design dimensions (H × W × D) | 55 × 25 × 29 mm |
| Power source | Self-powered through kinetic energy harvesting; no battery |
| Frequency | RF 433 MHz ASK |
| Wireless range | Up to 20m indoors (May vary depending on installation conditions) |
| Plate compatibility | M2 grid plates in the Slimline & Metal range |
| Switch type | Wireless kinetic grid transmitter |
| Operating life | 100,000 on/off operations |
| Weight | 23.5 g |
| Operating temperature | −10°C to +55°C |
| Receiver | Pair with a compatible ECO-NEWLEAF RF receiver |
| Certifications and standards | Model-specific documentation pending. |
| Mounting format | Single grid module; M2 3011-001 mechanical reference |
| Button construction | Non-removable button |
| Mains voltage and load rating | Not applicable to the transmitter; refer to the receiver datasheet |
| Minimum box depth | To be confirmed |
Fields marked “Contact us to confirm” are not yet available in the product record.
INSTALLATION & COMPATIBILITY
Installation notes
The transmitter does not switch the mains load. Lamp type, load capacity and dimming capability depend on the selected receiver.
The GS8 button is non-removable. Do not attempt to detach it from the switch module.
No mains connection is required at the transmitter. Do not apply mains voltage to GS8.
Use the matching M2 grid frame, faceplate and appropriate module trim. The button must move freely after assembly.
Allow clearance for the complete module, frame and adjacent wiring. Minimum box depth is to be confirmed.
Where the grid assembly also contains wired accessories, retain their installation and earthing requirements and those of the M2 plate system.
Install the selected receiver according to its own instructions and pair it with GS8. Check radio operation after final assembly; metal plates, walls and nearby wiring may affect range.
Compatibility applies to the mechanical module and plate interface. It does not imply approval or endorsement by M2. Other M2 ranges and other brands are not specified.
