GRID SWITCHES · 1 GANG · BLACK
GS1B

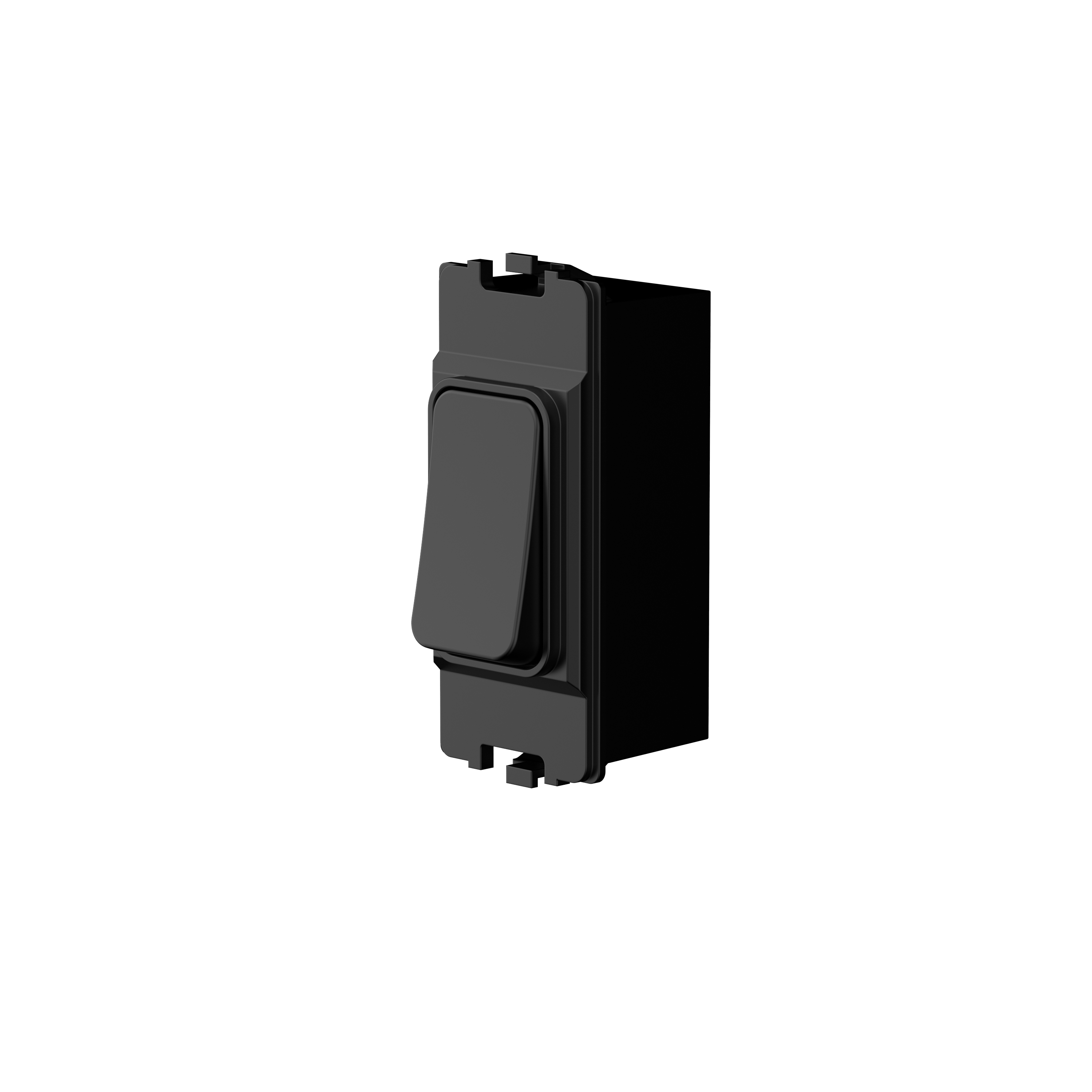

Wireless Grid Switch.
Battery-free wireless lighting control for MK Grid Plus switch plates. A compact, self-powered push-button module with a maximum indoor range of up to 20 m.
Colour: Black
- Compatible with MK Grid Plus switch plates
- No batteries or power cable required at the switch
- Use with a compatible on/off or dimming receiver
- Up to 20 m indoor wireless range
WIRELESS CONTROL. FAMILIAR GRID FORMAT.
Fits your MK Grid Plus installation.
The ECO-NEWLEAF GS1B wireless grid switch fits into MK Grid Plus switch plates, bringing self-powered wireless control to a familiar modular format.
Each button press generates the energy needed to transmit a wireless signal. Paired with a compatible receiving controller, the switch provides on/off control or supports dimming with a compatible dimming receiver.
No switch cable needs to be chased into the wall, helping reduce drilling and disruption when adding a control point. The receiving controller still requires its specified power supply and connection to the load.
Indoor control distance is up to 20 m. Walls, interference and installation conditions can reduce the usable range.
GS1 SERIES
The details that matter.
| Model | GS1B |
|---|---|
| Colour | Black |
| Dimensions (L × W × H) | 57 × 25 × 25.9 mm |
| Switch type | Push-button |
| Power source | Self-powered through kinetic energy harvesting |
| Operating frequency | To be confirmed |
| Number of controls | 1 button / 1 gang |
| Operating life | 200,000 on/off operations |
| Weight | 25 g |
| Operating temperature | −10°C to +55°C |
| Maximum indoor range | Up to 20 m |
| Plate compatibility | MK Grid Plus switch plates |
| Control Method | Pairing with ECO-NEWLEAF Wireless Controller |
Confirm receiver compatibility and the installation requirements for your lighting load before ordering. MK Grid Plus is referenced to identify plate compatibility.
