Choose what you need to control: switching, dimming or an outdoor installation. Browse each series below, select a control technology and compare the matching model specifications.
Load limits depend on the connected load type. Confirm LED compatibility, supply voltage and switch pairing in the model details before ordering.
Try a different series or control technology, or clear the filters to see the full range.
14 MODELS
RF, Wi-Fi and ZigBee options for switching control.
ON / OFF · C1 SERIES
A compact format for switching control where installation space is limited.
ON / OFF · C3 SERIES
Standard-format switching receivers with a choice of RF, Wi-Fi or ZigBee control.
ON / OFF · C3 SERIES
A higher-load RF switching option. Compare LED and resistive load ratings at AC 230V.
ON / OFF · C3 SERIES
Two switching channels in one standard-format receiver. Choose RF or RF + Wi-Fi control.
DC1101 SERIES
DC-powered on/off receivers with RF, RF + Wi-Fi or RF + Zigbee control.
WATERPROOF · C2 SERIES
Choose RF kinetic switch control or the Wi-Fi relay version for your installation.
9 MODELS
Explore D Series trailing-edge dimmers and DM10 Series 0/1-10V dimming controllers.
Compare the existing D1 Mini and D2 Standard trailing-edge dimming receivers below.
DIMMING · D1 SERIES
Compact dimming receivers for compatible dimmable lighting loads.
DIMMING · D2 SERIES
Standard-format receivers for compatible dimmable lighting. Separate limits apply to single and multiple connected loads.
DM10 SERIES
0/1-10V dimming controllers with RF, RF + Wi-Fi or RF + Zigbee control.
COMPARE YOUR OPTIONS
This table follows your current filters. Select a model for its full specifications.
Published maximum loads are not universal LED ratings. Confirm the lamp or driver, dimming method and complete system before ordering.
| Model | Series | Function / format | Control | Dimensions (L × W × H) | Load power |
|---|---|---|---|---|---|
| C1101R ↗ | C1 Series | Mini On/Off Receiver | RF | 44 × 44 × 22 mm | LED load: 300W (AC 230V) Resistive load: 1000W (AC 230V) |
| C1101W ↗ | C1 Series | Mini On/Off Receiver | RF + Wi-Fi | 44 × 44 × 22 mm | LED load: 300W (AC 230V) Resistive load: 1000W (AC 230V) |
| C1101Z ↗ | C1 Series | Mini On/Off Receiver | RF + ZigBee | 44 × 44 × 22 mm | LED load: 300W (AC 230V) Resistive load: 1000W (AC 230V) |
| C3101R ↗ | C3 Series | On/Off Receiver | RF | 76 × 44 × 32 mm | LED load: 500W (AC 230V) Resistive load: 2000W (AC 230V) |
| C3101W ↗ | C3 Series | On/Off Receiver | RF + Wi-Fi | 76 × 44 × 32 mm | LED load: 500W (AC 230V) Resistive load: 2000W (AC 230V) |
| C3101Z ↗ | C3 Series | On/Off Receiver | RF + ZigBee | 76 × 44 × 32 mm | LED load: 500W (AC 230V) Resistive load: 2000W (AC 230V) |
| C3161R ↗ | C3 Series | On/Off Receiver | RF | 76 × 44 × 32 mm | LED load: 800W (AC 230V) Resistive load: 3680W (AC 230V) |

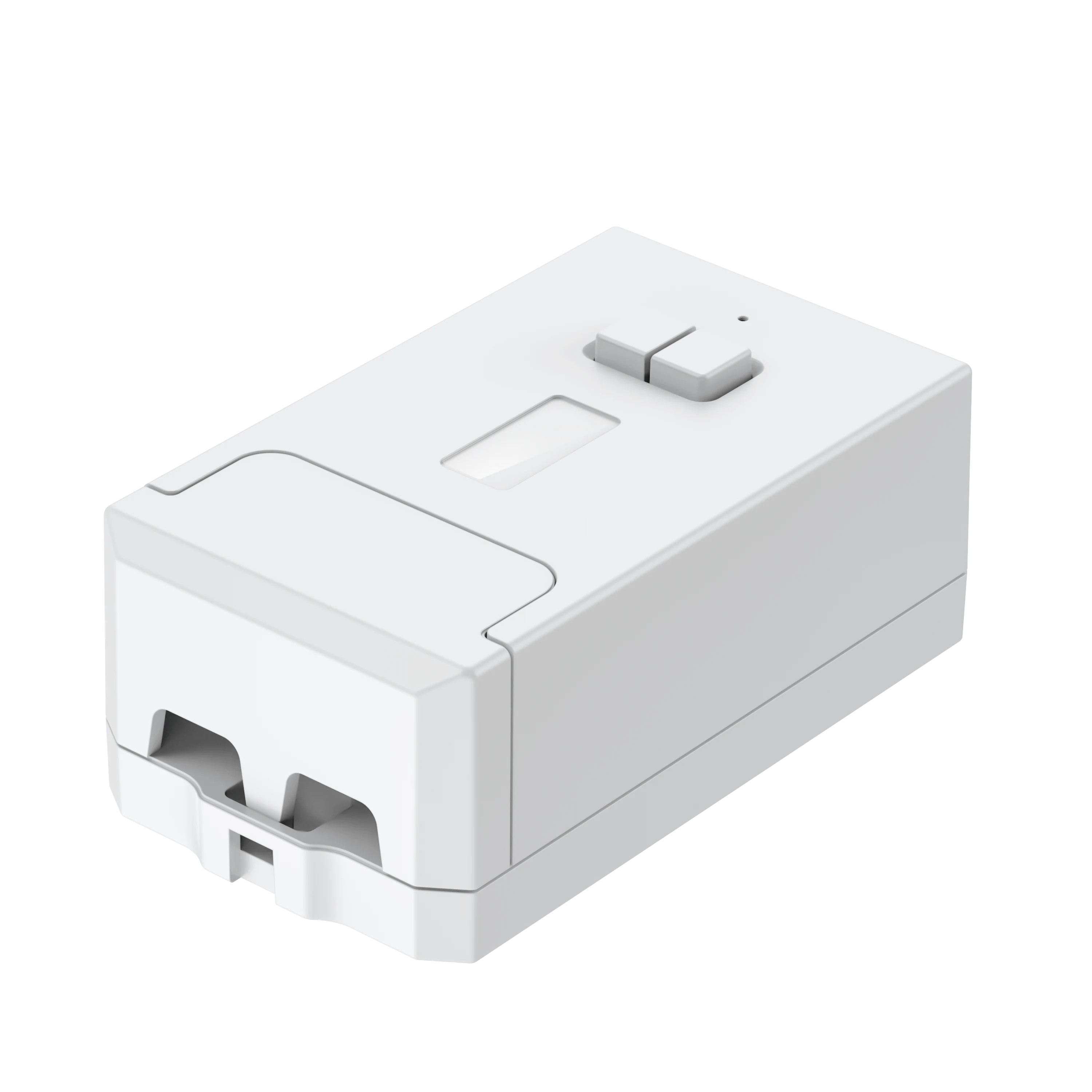

| C3102R ↗ | C3 Series | 2-Channel On/Off Receiver | RF | 76 × 44 × 32 mm | LED load: 500W (AC 230V) · Each Channel Resistive load: 2000W (AC 230V) · Each Channel |
| C3102W ↗ | C3 Series | 2-Channel On/Off Receiver | RF + Wi-Fi | 76 × 44 × 32 mm | LED load: 500W (AC 230V) · Each Channel Resistive load: 2000W (AC 230V) · Each Channel |
| DC1101R ↗ | DC1101 Series | 8–36 V DC On/Off Receiver | RF | 44 × 44 × 22 mm | Contact us for specifications |
| DC1101W ↗ | DC1101 Series | 8–36 V DC On/Off Receiver | RF + Wi-Fi | 44 × 44 × 22 mm | Contact us for specifications |
| DC1101Z ↗ | DC1101 Series | 8–36 V DC On/Off Receiver | RF + ZigBee | 44 × 44 × 22 mm | Contact us for specifications |
| D1100R ↗ | D1 Series | Mini Dimming Receiver | RF | 44 × 44 × 22 mm | Single load: 100W Multiple loads: 30W total |
| D1100W ↗ | D1 Series | Mini Dimming Receiver | RF + Wi-Fi | 44 × 44 × 22 mm | Single load: 100W Multiple loads: 30W total |
| D1100Z ↗ | D1 Series | Mini Dimming Receiver | RF + ZigBee | 44 × 44 × 22 mm | Single load: 100W Multiple loads: 30W total |
| D2100R ↗ | D2 Series | Dimming Receiver | RF | 76 × 44 × 32 mm | Single load: 150W Multiple loads: 45W total |
| D2100W ↗ | D2 Series | Dimming Receiver | RF + Wi-Fi | 76 × 44 × 32 mm | Single load: 150W Multiple loads: 45W total |
| D2100Z ↗ | D2 Series | Dimming Receiver | RF + ZigBee | 76 × 44 × 32 mm | Single load: 150W Multiple loads: 45W total |
| DM10R ↗ | DM10 Series | 0/1-10V Dimming Controller | RF | 44 × 44 × 22 mm | Contact us for specifications |
| DM10W ↗ | DM10 Series | 0/1-10V Dimming Controller | RF + Wi-Fi | 44 × 44 × 22 mm | Contact us for specifications |
| DM10Z ↗ | DM10 Series | 0/1-10V Dimming Controller | RF + ZigBee | 44 × 44 × 22 mm | Contact us for specifications |
| C2161R ↗ | C2 Series | IP68 Waterproof RF Receiver | RF | 124 × 53 × 41 mm | LED load: 800W (AC 230V) Resistive load: 3680W (AC 230V) |
| C2161N ↗ | C2 Series | Outdoor Wi-Fi Relay | Wi-Fi | 124 × 53 × 41 mm | LED load: 800W (AC 230V) Resistive load: 3680W (AC 230V) |
No models match the current filters.
C2161N: outdoor Wi-Fi relay; RF kinetic-switch pairing is not specified. C1101Z: confirm current radio and gateway specifications before ordering.
CHOOSE FOR YOUR LOAD
Choose the function, check the available space and confirm compatibility with your lighting and control system.
Get receiver guidanceSwitching or dimmingDimming requires a compatible dimmable lamp or driver.
Local or connected controlChoose RF, RF + Wi-Fi or RF + ZigBee. Confirm app or gateway requirements.
Outdoor useCheck the enclosure rating and installation conditions. The C2161N is a separate Wi-Fi relay option.
